| Place of Origin: | China |
| 브랜드 이름: | BRITEC |
| 인증: | ISO9001 |
| Model Number: | BR-ISG-100 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 25 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 500000 per month |
| Iimp: | 100kA | Warranty: | 5 Years |
|---|---|---|---|
| Operating Temperature: | -40°C~80℃ | Printing: | As Your Requests |
| Design: | OEM.ODM Designs | Item: | Isolating Spark Gap |

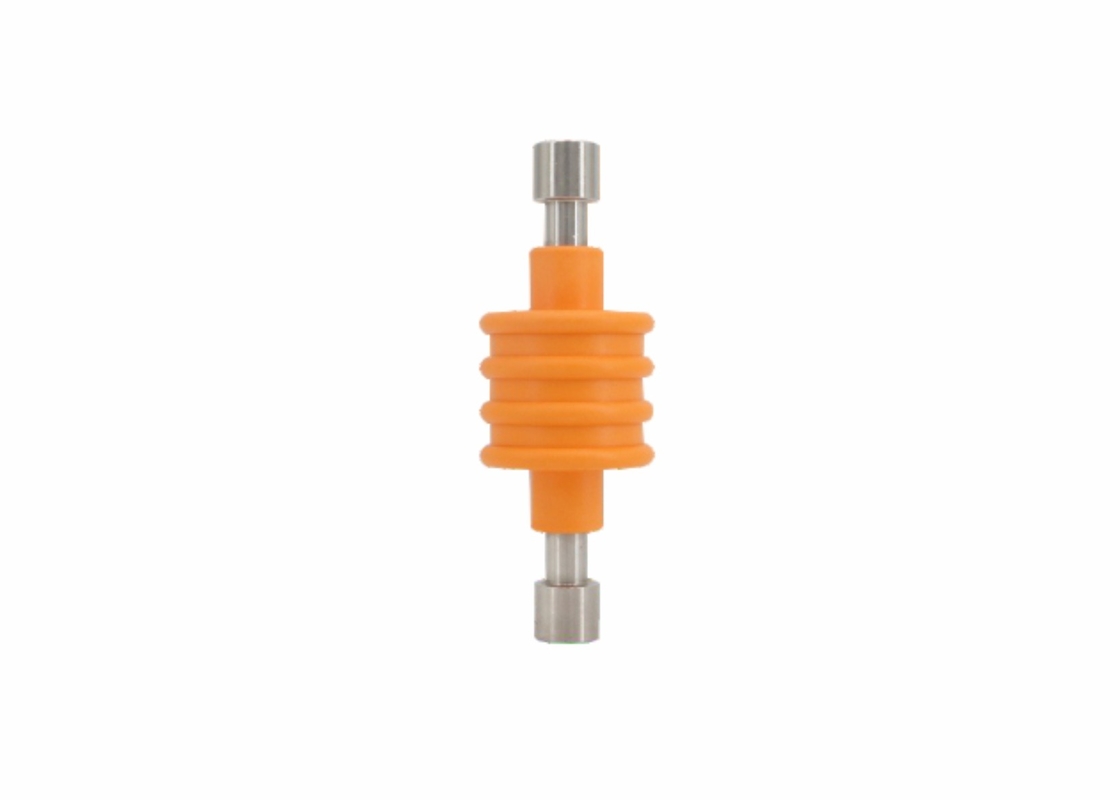

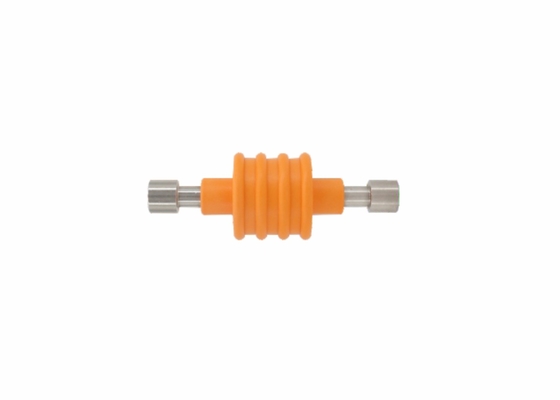

Isolating spark gap for indirect equipotential bonding
Accessories for lightning current absorbing connection
The isolating spark gap ensures lightning protection equipotential bonding and safely discharges overvoltages.
| Specification | BR-ISG-100 |
| Nominal discharge current (8/20μs) In | 100kA |
| Lightning impulse current (10/350μs) Iimp | 100kA |
| 100% Lightning impulse sparkover voltage Uas | ≤1.5kV |
| Rated power frequency withstand voltage | ≤250V |
| Operating temperature range ϑ | -40°C~+80°C |
| Length of enclosure L | 130mm |
| Diameter of enclosure D | 39mm |
| Enclosure material | Thermoplastic, UL94-V0 |
| Connection |
Rd 10mm
|
| Material (connection) |
Steel
|
| Protection level |
IP67
|
For indirect connection/grounding of operationally isolated system parts in the event of lightning
Protects personnel against shock hazards during electrical faults on the high voltage side.Q: What is the brand name of this product?
A: The brand name of this product is BRITEC.
Q: What is the model number of this product?
A: The model number of this product is BR-ISG-100.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What certification does this product have?
A: This product is certified with ISO9001.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 100 PCS.
