| 원래 장소: | 중국 |
| 브랜드 이름: | BRITEC |
| 인증: | TUV/CB/CE/ROHS/ISO9001 |
| 모델 번호: | TY2-30 |
| 최소 주문 수량: | 1개 부분 / 부분 |
|---|---|
| 포장 세부 사항: | 수출 포장 |
| 배달 시간: | 지불 뒤에 15 일 만에 수송됩니다 |
| 지불 조건: | L/C (신용장), 인수 인도, 전신환, 웨스턴 유니온 |
| 공급 능력: | 50000개 부분 /는 달을 연결합니다 |
| 아이템 이름: | 단일 상 spd | 타입: | T2 |
|---|---|---|---|
| 패키지: | 통 패키지 | 파형: | 8/20 |
| 증명서: | TUV CE IEC ROHS | 장착: | DIN은 35 밀리미터를 격분합니다. |
| 보증: | 5년 | 경향의 타입: | Ac |
| 정격 주파수 (f): | 50/60Hz | 지불: | Paypal.TT.Western 통합 |
| 하이 라이트: | Type 2 Surge Protection Device 275V,Single Phase Spd Type2 Surge Protector,60Hz Spd Type 2 Surge Protector |
||

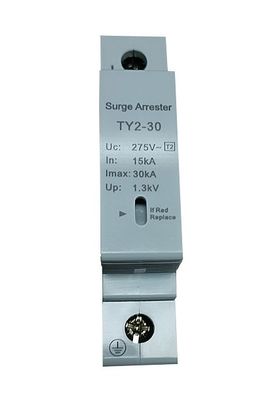

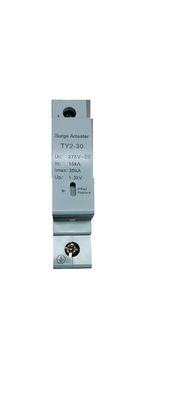

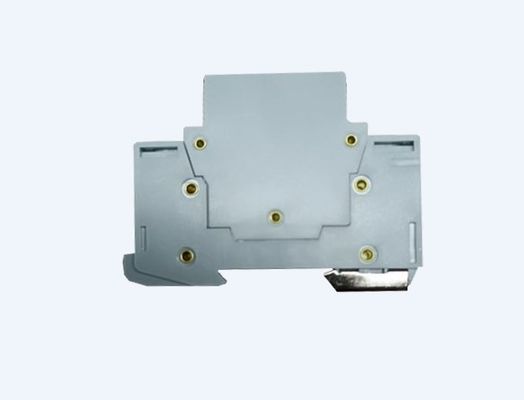

275V surge voltage protector tvss spd Type 2 surge arrester
Type 2 surge arrester Features:
Products features:
1. Pluggable module, easy for installation and maintenance
2. High discharge capacity, quick response
3. Double thermal disconnection devices, providing more reliable protection
4. Green window will change when fault and also provide remote alarm control at the same time
Type 2 surge arrester Technology characteristic:
| TY2-30 | |
| Max. continuous operating a.c. voltage Uc | 275V |
| Nominal discharge current (8/20us) In | 15kA |
| Maximum discharge current (8/20us) Imax | 30kA |
| Voltage protection level Up | ≤1.3kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 125A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Test standards |
IEC 61643-11, EN 61643-11 |
AC SPD Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Type 2 surge arrester Application:
Application from 1 to 4 poles
Protection against surge and overvoltage spikes
Good protection level
High discharge capacity
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
