원래 장소: | 중국 |
브랜드 이름: | BRITEC |
모델 번호: | BR-25M 2P |
최소 주문 수량: | 100개 부분 / 부분 |
---|---|
포장 세부 사항: | 수출 포장 |
배달 시간: | 지불 뒤에 15 일 만에 수송됩니다 |
지불 조건: | L/C (신용장), 인수 인도, 전신환, 웨스턴 유니온 |
공급 능력: | 50000개 부분 /는 달을 연결합니다 |
제조사: | 온주 브라이테크 전기 주식회사. | 파트 명칭: | 종류 1 서지 안전장치 |
---|---|---|---|
원산지: | 저장, 중국 (본토) | 브랜드 이름: | BRITEC |
안전 기준: | IEC61643-1 | UC: | 275V |
이임피: | 25KA | 계속 증가해서: | 35 밀리미터 딘 레일 |
아니오 막대기를 쓰세요.: | 2P | 애플리케이션: | 단일 상 |
하이 라이트: | Type 1 Surge Protection Device 275V,Single Phase Type1 Surge Protector,25kA T1 Type 1 Surge Protector |

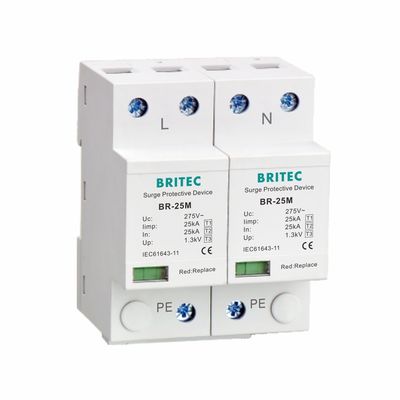

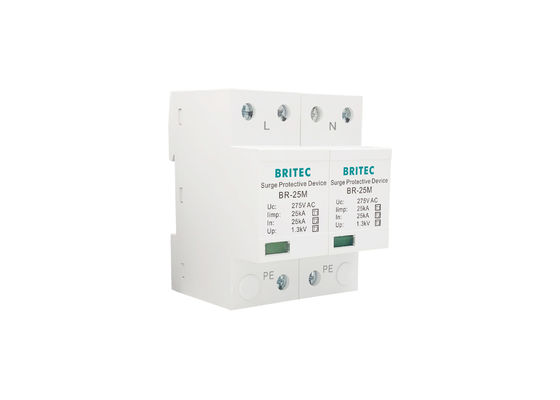

25kA Type 1 Surge Protector Features:
25kA Type 1 Surge Protector Technology characteristic:
BR-25M 2P | |
Max. continuous operating a.c. voltage Uc | 275V |
Voltage protection level Up | ≤1.3kV |
Lightning impulse current (10/350us) Iimp | 25kA |
Nominal discharge current (8/20us) In | 25kA |
Maximum discharge current (8/20us) Imax | 100kA |
Response time tA | ≤25ns |
Test standard | IEC61643-1 |
Operating temperature range Tu | -40℃—80℃ |
Relative humudity(25°C) | ≤95% |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Dimension:
25kA Type 1 Surge Protector Application:
Company Information:
Britec is a factory, specializing in SPDs, located in Yueqing, Zhejiang, China. With advanced technology, our products have been authorized by TUV Rhineland, and CE successfully. We adheres to self R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, insist on being professional,large-scale brand.
Certification:
Product process:
Shipping:
FAQ:
Q1: How long is the delivery time?
A: Normally 20 working days after received deposit, we have our own factory, the delivery time can be adjust flexible.
Q2: What is the warranty for the surge protection?
A: Two years.
Q3: What is the payment terms?
A: T/T, Paypal, etc.
Q4: How about the products quality?
A: Our products have got CE, CB, TUV certificates.
Q5: Is it OK to print my logo on lightning arrester?
A: Yes. Please inform us formally before our production.
